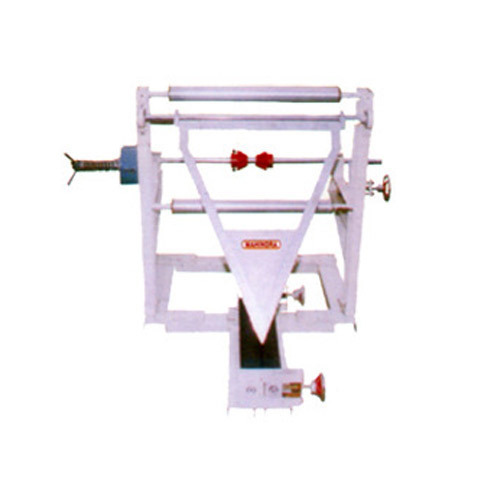

Plastic Folding Machine

Plastic Folding Machine
Plastic Folding Machine
Product Code : PFM-24
Product Description

Backed by rich industry experience and in-depth market domain, we are engaged in manufacturing, exporting and supplying a wide range of Plastic Folding Machine. Manufactured by our adept professionals using optimum quality components and by inculcating advanced technology, this machine is made available in a variety of technical specifications. Offered machine is used for folding plastic at high speed. In addition, we provide this Plastic Folding Machine at pocket friendly prices to our clients.

Features:

  • Operational fluency

  • Longer service life

  • Unmatched performance

  • Micro Process Control with Digital Display.

  • Key Pad Setting  for Speed, Size & Count.

  • Photocell control for printed pouches Static charge eliminator.

  • UN. winding with manual friction break.

  • Rotary type gusseting system.

  • Center & bottom sealed pouch by folding process.

  • Tow side sealed pouch

  • 3- side sealed pouch from single web sheet or top bottom different web- sheet

  • Low maintenance

This product is equipped with high quality micro process control with digital display. This product is widely used for center and bottom sealed pouch by folding process. This product is available at cost effective market prices.

Specifications:

Model MA-500
 Max. film 700 mm.
 Max. roll dia 600 mm
 Width of pouch 50-350mm.
 Length of pouch 50-550 mm
 Center seal width 4-10 mm
 Side seal width 5-20 mm
 Pouch production / min.* 25-125
 Main motor (k w) 1.5
 UN-winding motor (k w) 7.5
Heaters:
 Center seal 400 wt x2 0.8
 Side seal 500 wt x 4 2
 Bottom seal 900 wt x 2 1.8
 Total connected load (k w) 6.85
 Machine weight (appx. In .kg.) 1900
 Space required in meter 6.6 x 1.3 x 1.6
 L x w x h -
