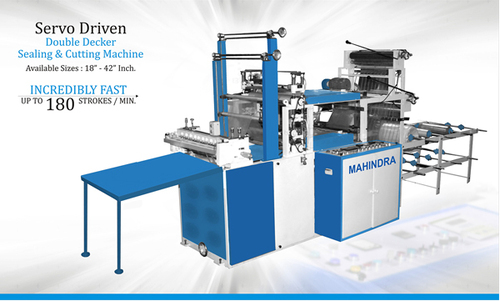

Bag Making Machines

Bag Making Machines
Bag Making Machines
Product Code : BMM-30
Product Description



Our enterprise has gained immense recognition in manufacturing, exporting and supplying quality assured array of Bag Making Machines. These machines are manufactured with the aid of cutting-edge technology in complete compliance with predefined industry norms at the well-equipped production unit. Ideal for making the bags of different sizes, these machines are highly demanded for their efficient working. In addition, these Bag Making Machines are available at industry leading rates.

Features:

  • Rugged construction

  • Power efficient

  • Easy operation

  • Trouble-free functioning

Features & Attachments:
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed.

  • High production efficiency to save manpower and time

  • Hot roller sealing device for OPP stationery bag.

  • Ultra-Sonic Sealing Device for OPP stationery bag.

  • Hole punching device. (6mm, 8mm, 10mm, etc.)

  • Handle Punching Device. (Kidney shape)

  • Heavy duty unwind stand with E.P.C. & powder brake.

  • Inverted "T" shape hanger hole punching device. (Butterfly hole punching device)

  • Auto stacker

  • Corner sealing device. (Slant sealing at bag's bottom for standing pouch V cut & U cut)

  • Triangle folding device (For folding single sheet PE film to run in-line with the machine)

  • Bottom Gusseters

  • Tape Attachment

  • Learning Attachment

  • Photo Cell for Printed Bags.

Specifications:

  • HIGH SPEED UP TO 200 CYCLE PER MINUTE*

  • SERVO DRIVE FOR ACCURATE INDEXING.

  • MICRO PROCESSOR CONTROL WITH DIGITAL DISPLAY.

  • KEY PAD SETTING FOR SPEED, SIZE & COUNT.

  • PHOTOCELL CONTROL FOR PRINTED BAGS.

  • STATIC CHARGE ELIMINATOR

  • TENSION FREE WEB WITH MANUAL FRICTION BREAK.

  • UNWINDING, SINGLE ROLL WITH MANUAL FRICTION BREAK.

  • STRONG & STURDY BUILT FRAME FOR VIBRATION FREE SMOOTH RUNNING

Technical Details:

MODEL MA-401 MA-402 S MA-403 S MA-402 S MA-403 S
SIZE OF MACHINE 455 610 750 915 1000
MAXIMUM WEB WIDTH 455 610 750 915 1000
MAXIMUM DRAW LENGTH (IN MM) 610 750 750 1000 1000
MINIMUM DRAW LENGTH 65 65 65 65 65
MAXIMUM SPEED (CYCLE /MIN.) 125 125 100 90 80
MAIN MOTOR (IN HP) 1 2 1.5 2 2
UN-WINDING MOTOR (IN HP) 1 1 1 1 1
CONVEYER MOTOR IN HP) 1 1 1 1 1
220 VOLT HEATER (IN KW) 2 2.5 3 4 4.5
TOTAL CONNECTED LOAD (IN KW) 4.3 4.8 5.6 7 7.5
POWER SUPPLY 3PHASE 440 V 440 V 440 V 440 V 440 V
WEIGHT OF MACHINE (APPX. IN KGS.) 1000 1100 1200 1350 1500

SPACE REQUIRED(IN CM) LENGTH 525 525 525 550 750
WIDTH 115 130 145 160 160
HEIGHT 195 195 195 195 195
